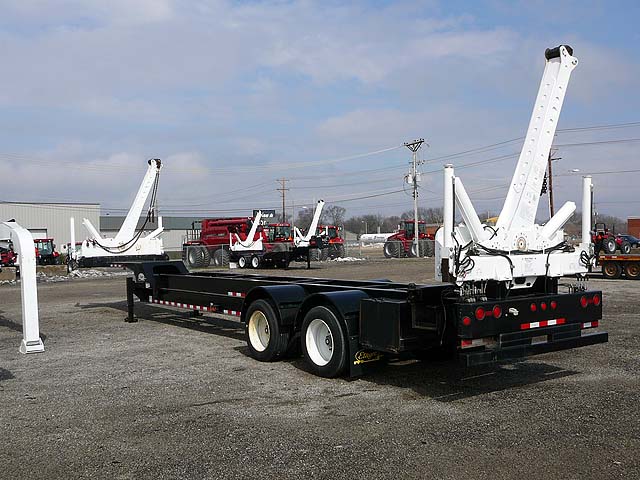

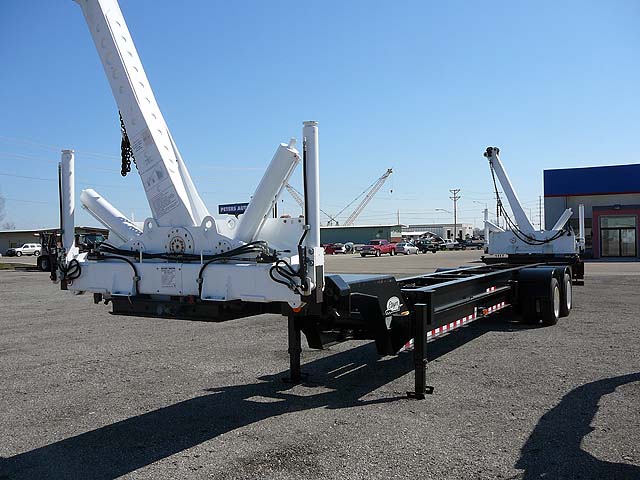

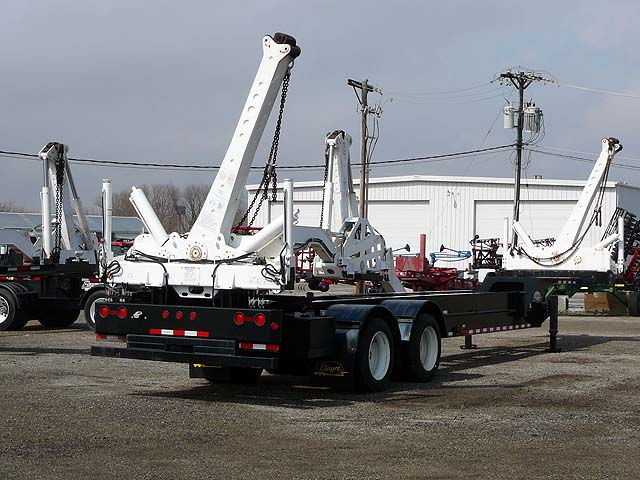

Used 10T Swing Thru 22,000 lb.
Lifting Capacity Double Sided Container Handler,

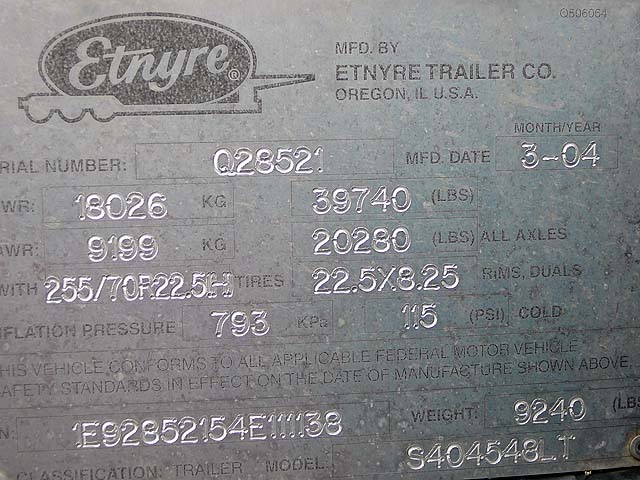

Mounted On An Etnyre 39,740 lb. GVWR
Sliding Trailer For Loading 40' - 45'- 48' Containers

  • Etnyre Trailer manufactured in Oregon IL
  • Telescoping frame 40'- 45’- 48' container lengths
  • Overall trailer length with 40’ container is 45’, with 48’ container it is 53’
  • 84” Swing clearance
  • Telescoping pin and hole load bearing landing gear
  • 255/70R22.5 radial tires on steel bud type wheels

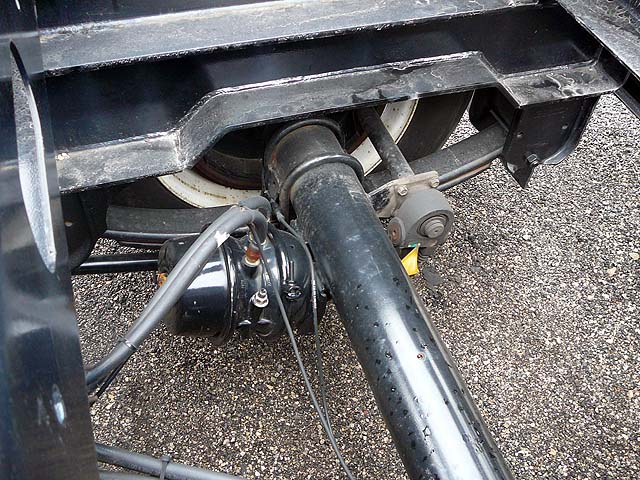

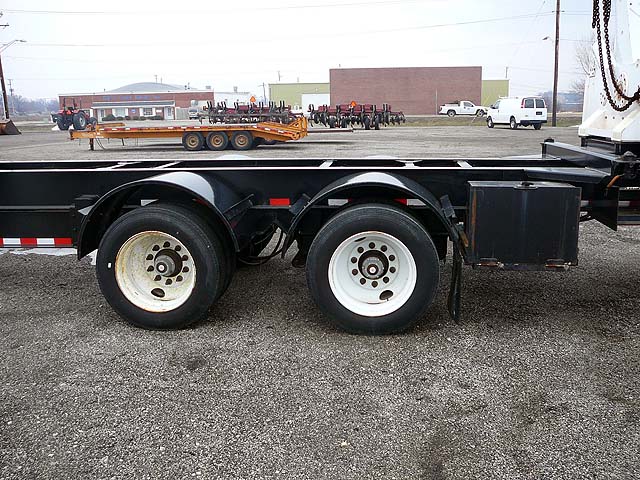

  • Dual, 22,280 lb. axles, with oil bath hubs, spring suspension with 60" axle spacing

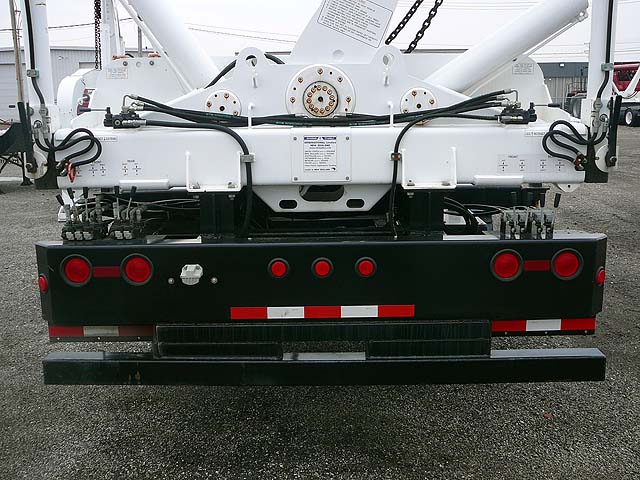

    Rear bumper has brake & turn LED signals, 3-center LED’s, license plate lamp

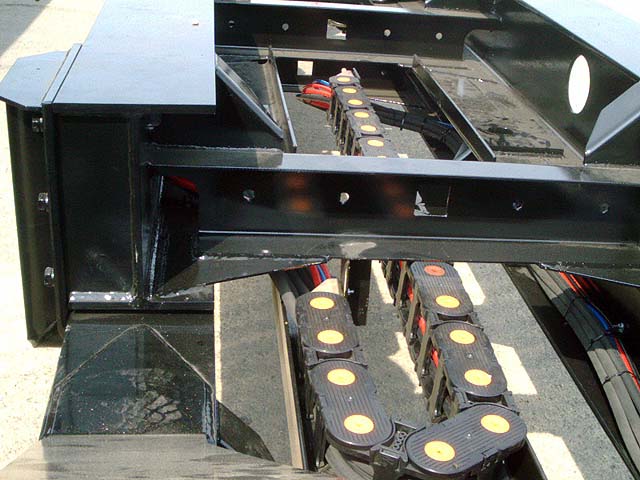

  • E-Chain inside of the sliding tubes with hoses and electrical wiring
  • Black metal fenders
  • Trailer is black
  • 10T Swing Thru Fixed Crane System with 22,000 lb lift capacity hydraulic operated booms
  • 3/8” Grade 100 lifting chains with shorting elements and ISO container lifting lugs
  • Hydraulic stabilizing legs are mounted on sliding outriggers at all 4 corners

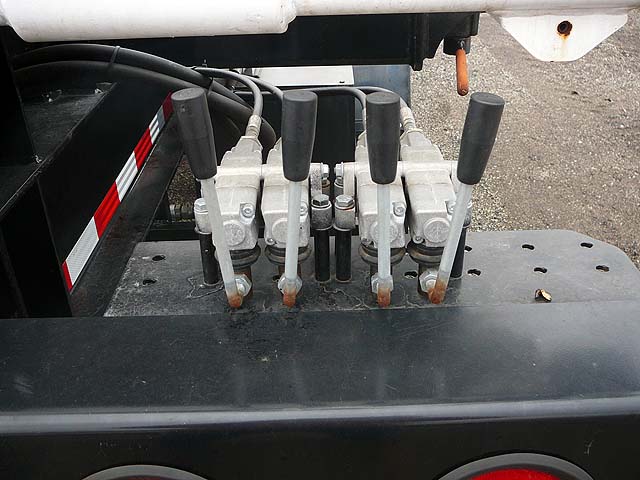

  • Manual operated hydraulic boom controls are mounted at both rear corners of the trailer for better visibility
  • Hydraulic cylinders have pilot operated check valves, or counter balance valves to ensure smooth operation and safety against hose failure or cylinder creep
  • With a 48” fifth wheel height, a 40’ high cube with the container tunnel straddling the trailers gooseneck transport height is 13'6"(Doors to rear)

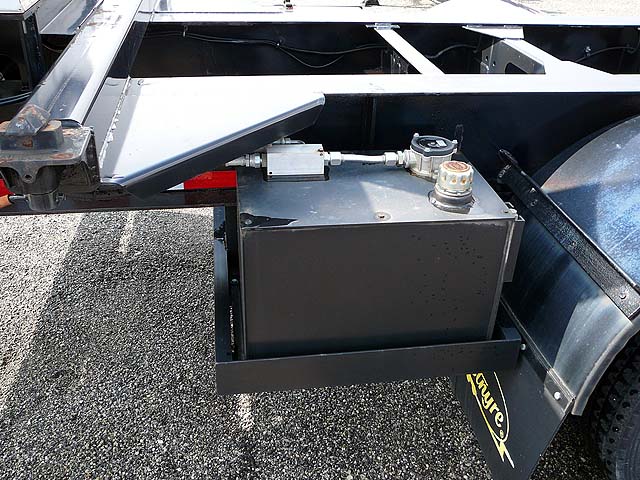

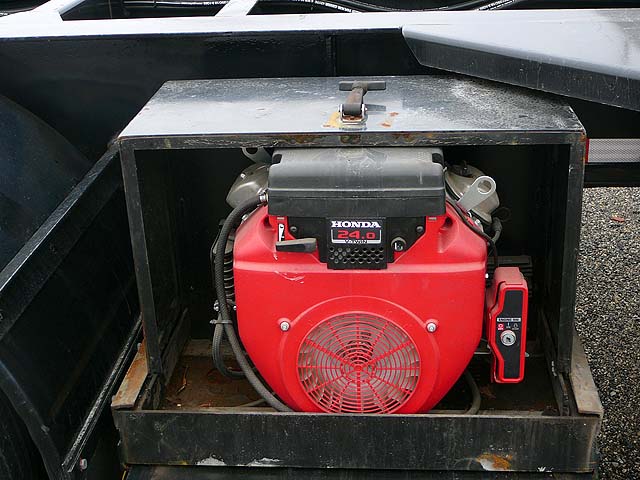

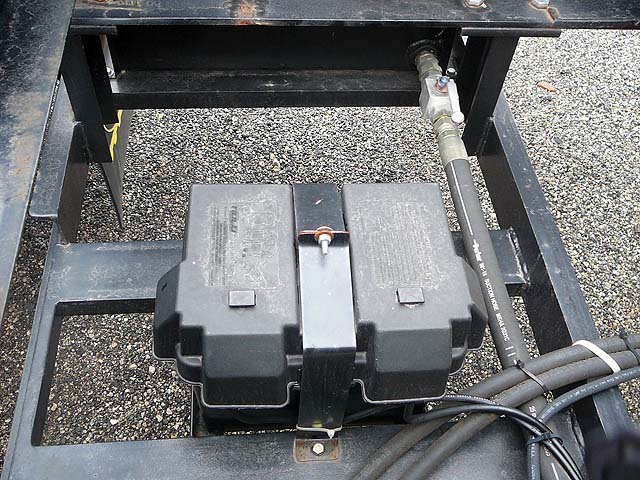

  • “APU” self contained hydraulic system with double hydraulic pumps, oil reservoir and filter. With a 24HP Honda 4 cycle air cooled Gas engine with 12 volt electric
  • Swing Thru is painted white

This Swing Thru and trailer has been Container Handling Solutions, Inc. demonstrator and local delivery unit. There is no hour meter but it does not have 20 hr. of use I’m sure. Paint is a little faded but not real bad. Everything works and it is ready to use.
